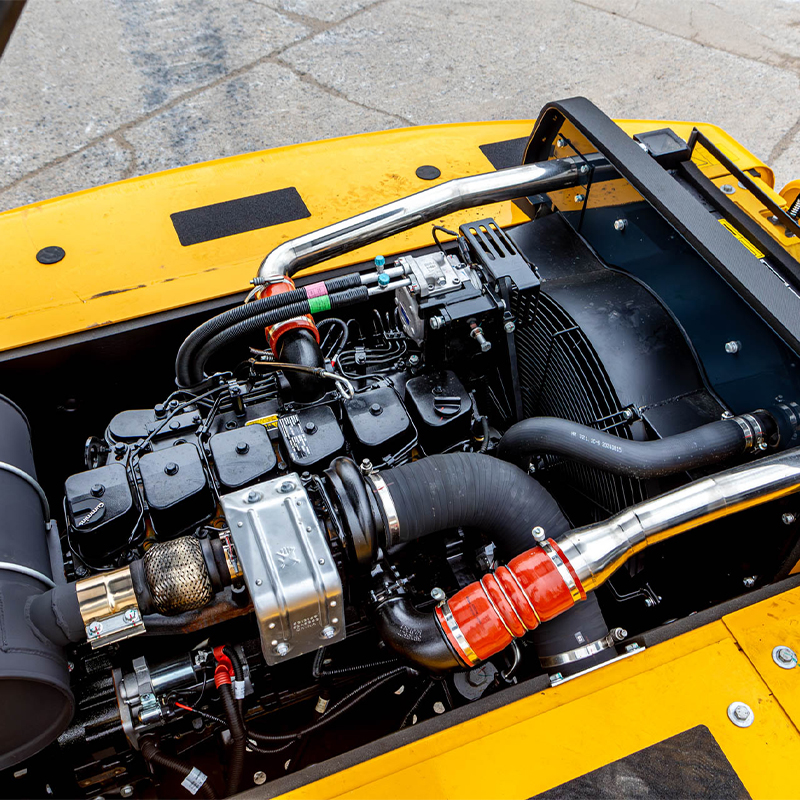

Powerful & Efficient Engine – Equipped with the latest Cummins electronic fuel injection engine for strong performance, low fuel consumption, and high reliability.

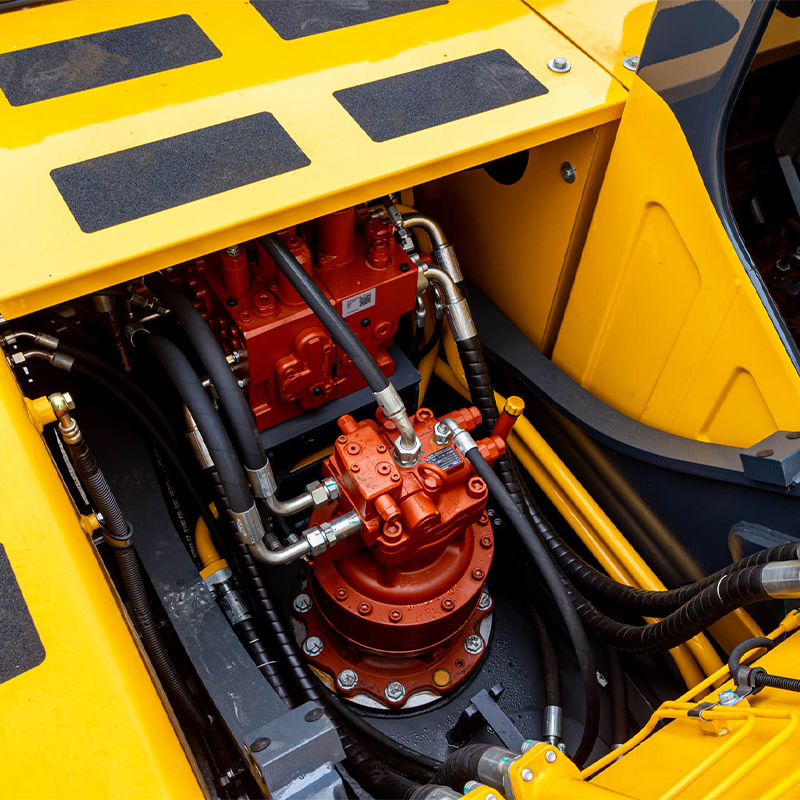

Advanced Hydraulic System – Upgraded Kawasaki system with improved valve design for increased flow, reduced pressure loss, and smoother, more precise operations.

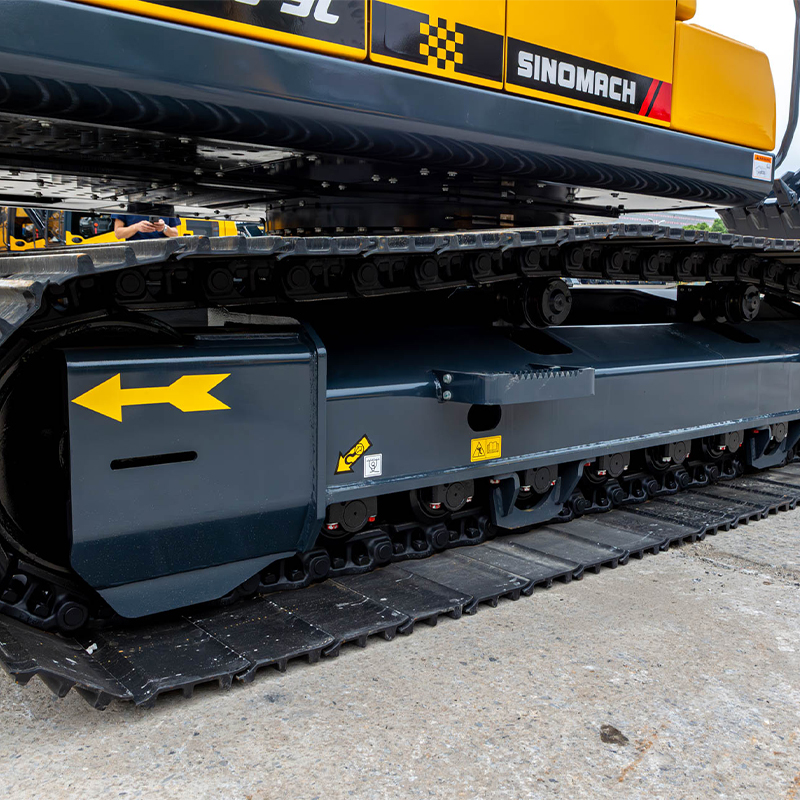

Reinforced Structure & Stable Chassis – Heavy-duty work equipment with optimized stress distribution for greater strength and durability. The extended, widened undercarriage enhances stability.
Intelligent Control System – Adjusts hydraulic power based on working conditions for optimal efficiency and performance.
Smart Monitoring System – 5.7-inch high-brightness color display with real-time diagnostics, maintenance reminders, and fault alarms.

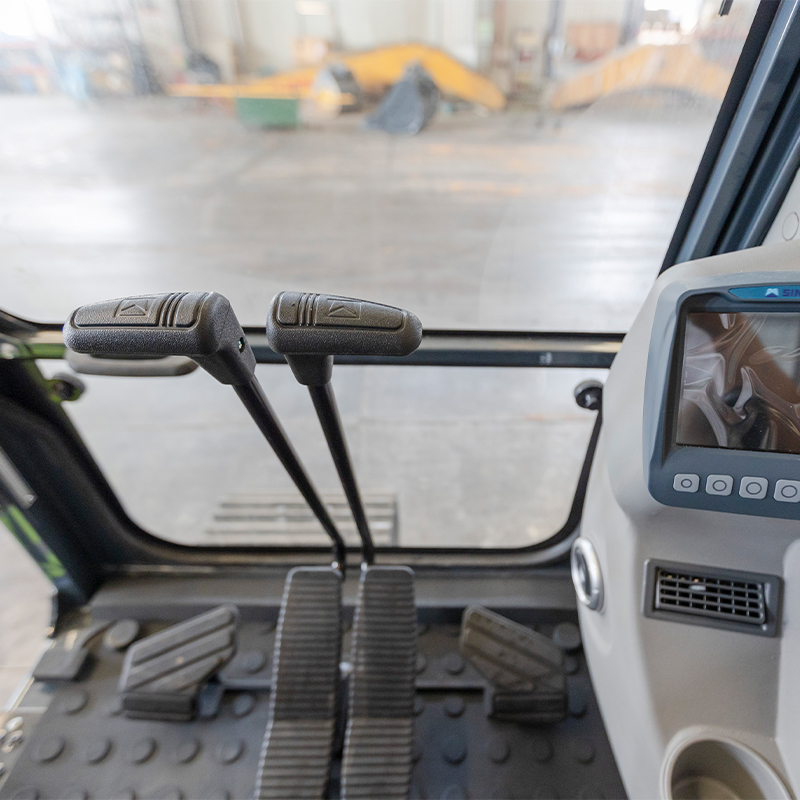

Comfortable & Secure Cab – Spacious, modern cabin with injection-molded interior and automatic air conditioning for a better working environment.

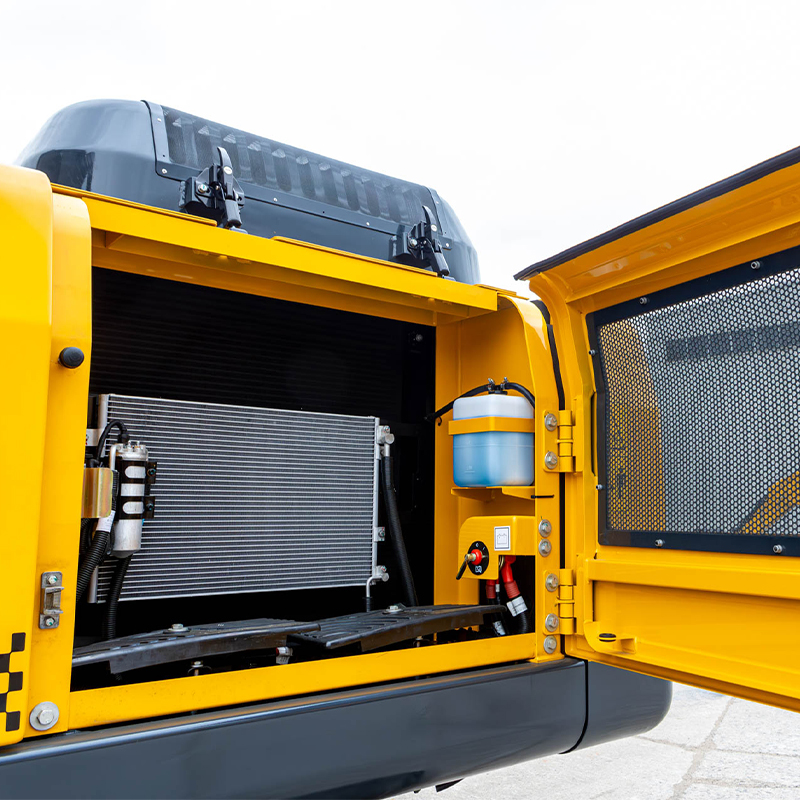

Easy Maintenance – Centralized ground-level service points for quicker, more convenient maintenance.

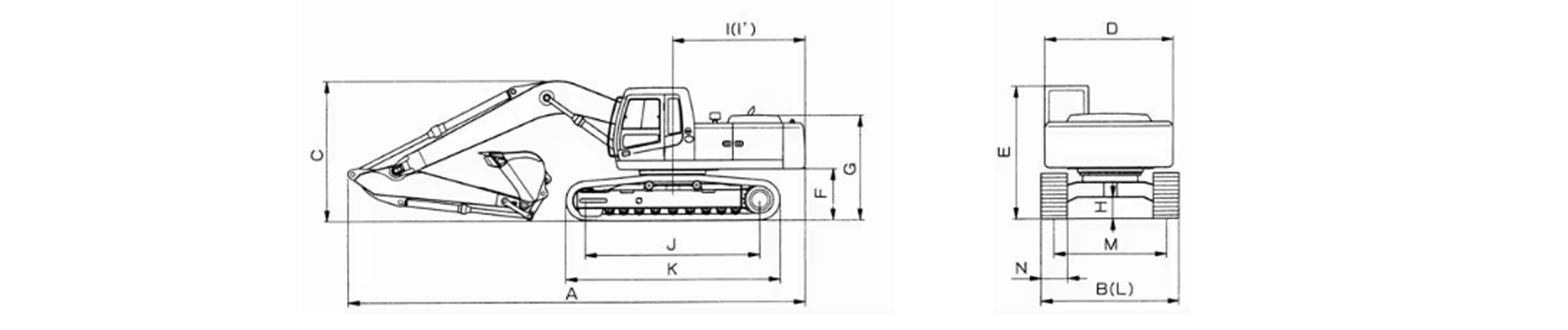

| Dimensions | Operating weight | Kg | 22300 |
| Rated bucket capacity | m3 | 1.1 | |
| Overall length | mm | 9520 | |
| Overall width（Standard track shoe） | mm | 2800 | |
| Overall height | mm | 3030 | |
| Standard track shoe width | mm | 600 | |
|
Performance |
Travelling speed (H/L) | Km/hr | 5.8/3.3 |
| Swing speed | rpm | 13.9 | |
| Gradeability | Degree(%) | 35（70%） | |
| Ground pressure | Kgf/cm2 | 0.47 | |
| Working Range |
Maximum digging radius | mm | 9953 |
| Maximum digging depth | mm | 6690 | |
| Maximum digging height | mm | 9642 | |
| Bucket digging force | kN | 137 | |
| Stick digging force | kN | 102 | |
| Engine | Model | Cummins | |
| Type | 6-cylinder in-line, four-stroke turbocharger | ||
| Rated power |
112KW（150PS）@1950rpm
|
||

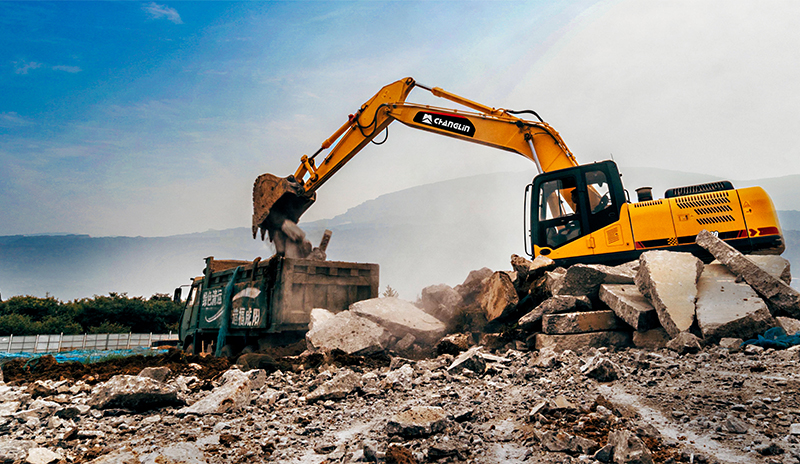

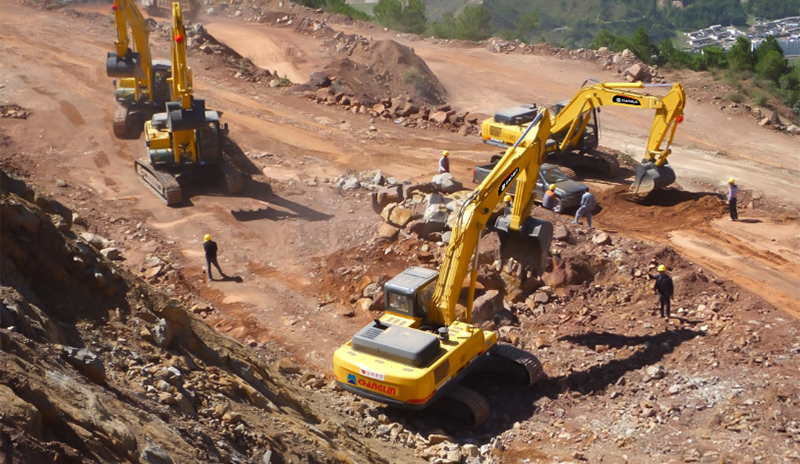

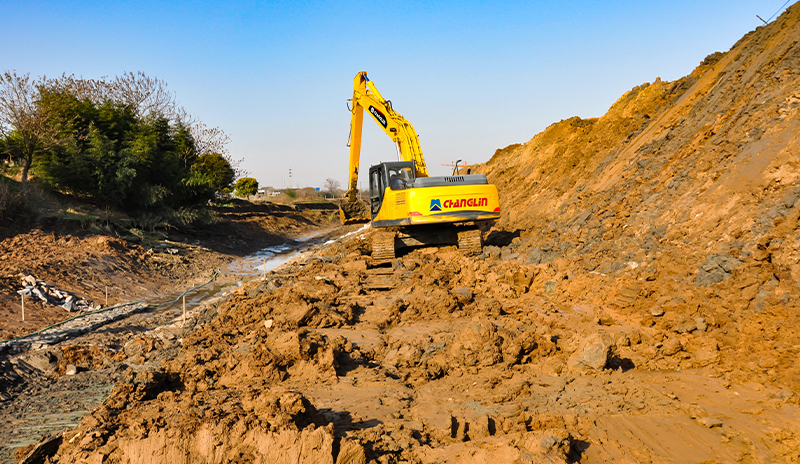

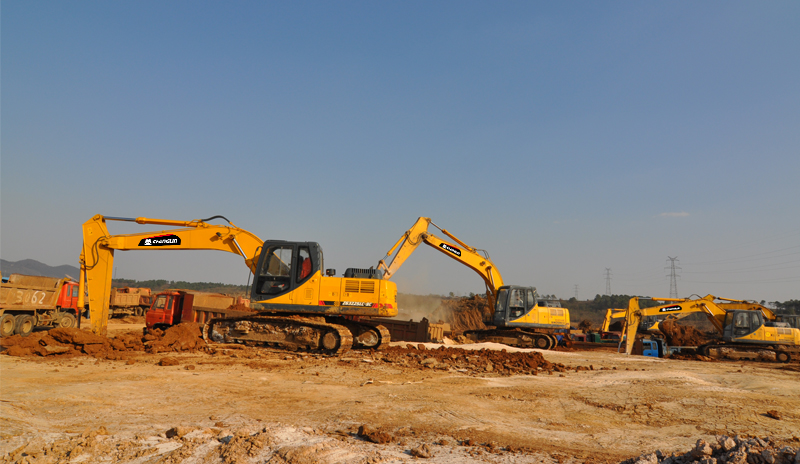

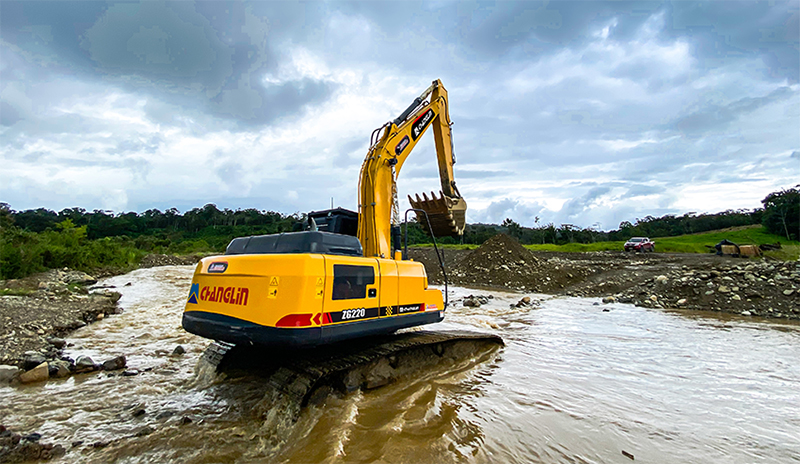

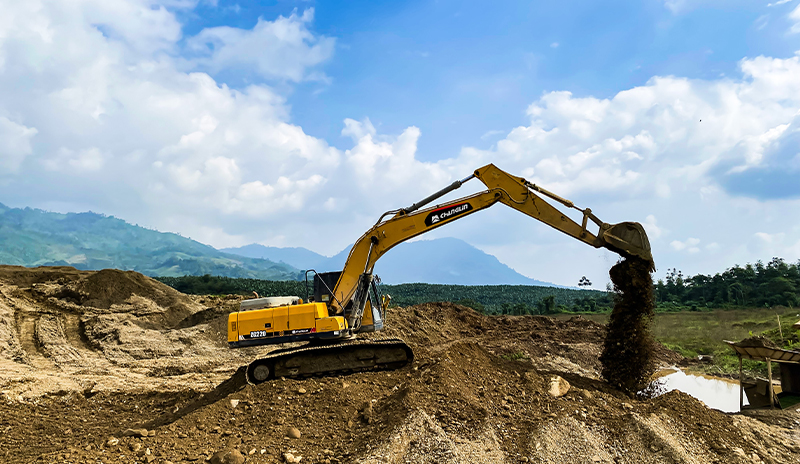

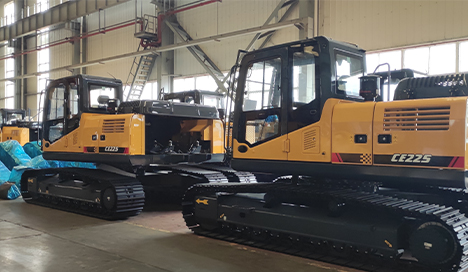

Medium-sized excavators with greater digging depth and power for medium-sized earthworks and construction sites, among other scenarios.

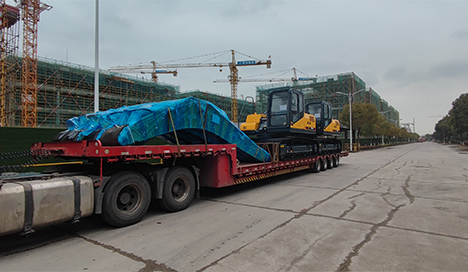

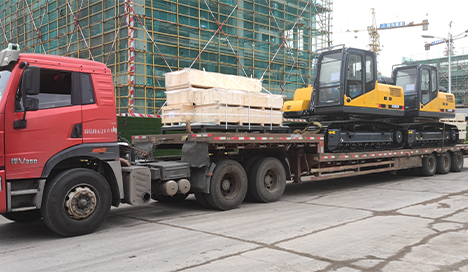

Packing &Shipping
Professional equipment packaging services are employed, using high-strength protective materials and packaging solutions tailored to the specifications of the equipment and the mode of transport.
List of exhibitions attended

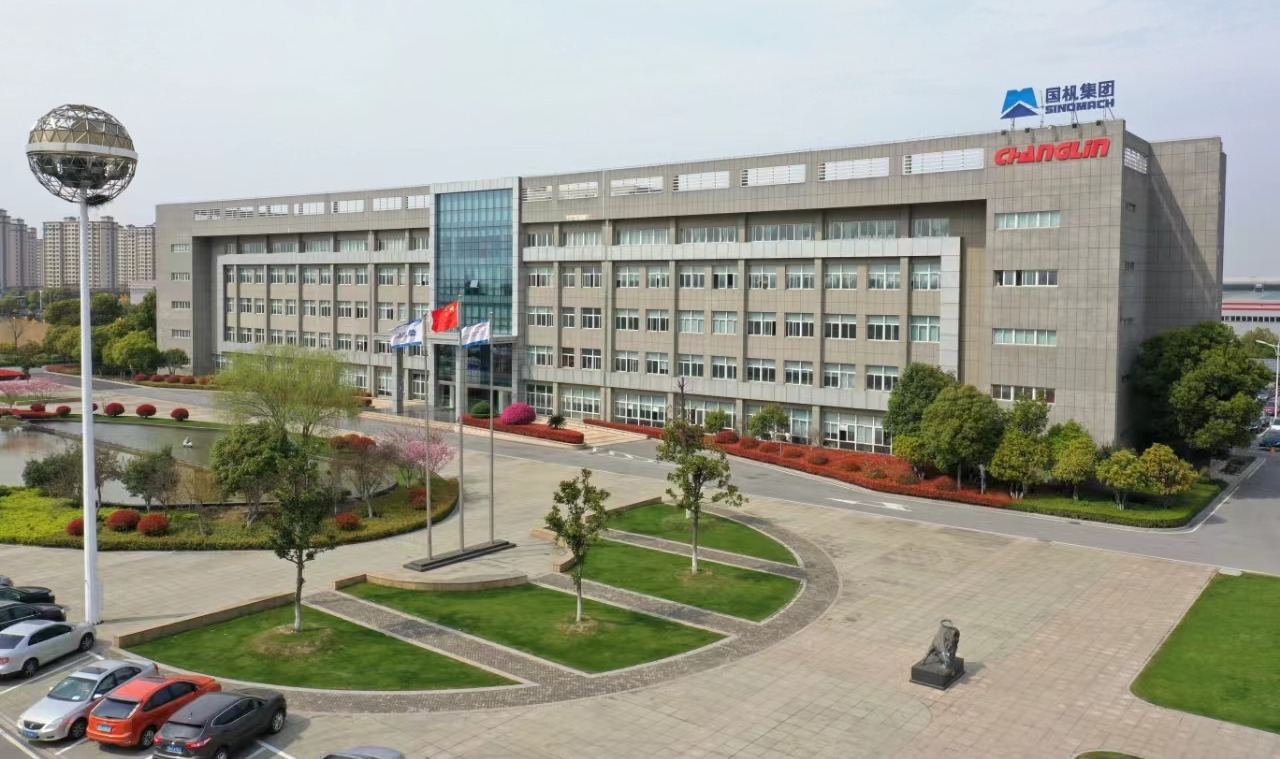

Powerful factory:Our affiliated factory, SINOMACH Changlin Co., Ltd., has over 60 years of R&D and manufacturing experience.
Global Brand Coverage:Our products have been sold to over 100 countries and regions, with a strong presence through agents in more than 50 countries and regions.
Big Brand Collaboration:As an international company, we are dedicated to becoming a world-class manufacturer in the field of engineering equipment and related heavy industry.
R&D technical capacity:It has earned prestigious titles including National Technology Center, Postdoctoral Research Workstation, and National Quality Management Award.
